The Shower Cartridge–The “Heart” of the Shower System

Hey there! If you’re here, chances are you’re curious about the small but mighty part behind your shower handle — the cartridge. Or maybe your shower’s acting up with sudden temperature shifts, drips, or low pressure. Either way, you’ve found the right guide.

Why does this matter? Because the shower cartridge is the brain of your shower. It keeps your water flow steady, safe, and comfortable. When it fails, it can turn a relaxing rinse into a plumbing problem.

But don’t worry — by the end of this guide, you’ll know how to spot issues, fix them, and choose the right replacement. Let’s get started!

So, what exactly is a shower cartridge? Think of it as the tiny but mighty engine inside your shower faucet. It’s a small, often cylindrical part hidden behind your shower handle that’s responsible for a super important job: precisely mixing hot and cold water and controlling the water flow to your showerhead. It’s what allows you to turn your shower on and off, and dial in that perfect temperature every single time.

Ceramic valve cartridges are the most common and cheapest. Top bathroom brands use them.It lasts a long time. Ceramic doesn’t corrode or get dirty. It is safe and seals well.
New ceramic materials are stronger and more flexible, so more ceramic valve cartridges are used in faucets. Ceramic valve cartridges are lighter, easier to install and cheaper. It depends on the water quality.

This new shower cartridge is made from stainless steel. It uses lasers to make a seven-hole steel ball valve.
You can adjust the water temperature. Stainless steel valve cartridges are good for poor water quality. You can also clean the cartridge by taking it apart.
Make stainless steel valve cartridges is expensive. They cost more than ceramic valve cartridges.

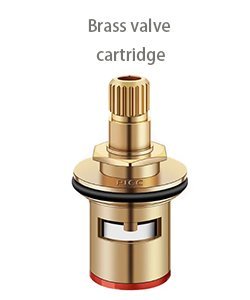

This valve cartridge is easy to use, long-lasting and ensures smooth rotation. It’s not popular because it doesn’t look or work well. The axis-rolling valve cartridge is rare in large brand faucets because it is no longer used much.

• Durability and longevity: Ceramic valve cartridges last a long time and don’t wear out. They last a long time and are a reliable choice for faucets.
• Excellent water control: These cartridges control water flow and temperature, promoting water efficiency, especially in water-scarce areas.
• Low maintenance requirements: Ceramic shower cartridges don’t need regular maintenance and don’t age. This means you don’t need to replace them as often, which saves money.
• Seals better: Ceramic materials are strong and resistant to corrosion, which makes them great at sealing.
• Easy installation: Ceramic cartridges are compatible with various faucet models, making them accessible to homeowners and plumbing professionals.
• Eco-friendly option: Ceramic valve cartridges help save water by controlling flow.

Ceramic valve cartridges are popular in modern plumbing for their durability, efficiency, low maintenance, and good sealing.

Not all shower cartridges are the same! Each type fits specific systems and offers different control levels. Knowing the type helps you understand your shower setup.

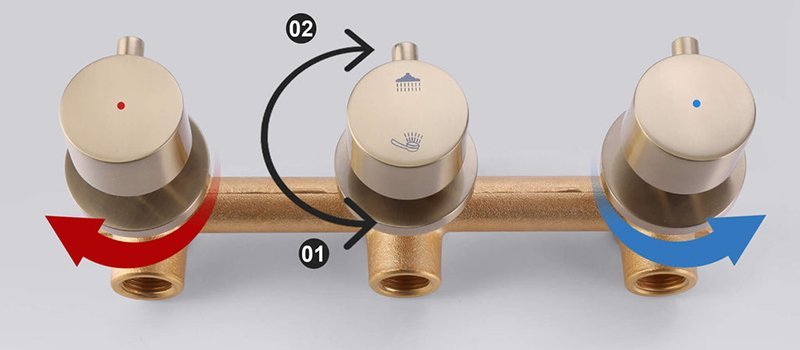

(via.Rbrohant»)

• Flow cartridges don’t mix hot and cold water or control temperature—they simply turn water on/off or adjust flow. They’re common in systems with separate hot, cold, and volume handles or older two-handle setups.
• They work like a gate, using ceramic discs or rubber washers inside. Turning the handle aligns the parts to let water through—the more you turn, the more water flows. Turning it off blocks the path completely.

• Simple Functionality: They are straightforward in design and operation, focusing solely on water volume control.
• Precise Flow Control: They can offer fine-tuned control over the water volume.
• Easy to Identify: Their specific function makes it relatively easy to diagnose issues related to water flow.

• No Temperature Control: They don’t regulate temperature, so separate hot and cold controls are needed—less convenient for some.
• Pressure Sensitivity: Older types may not handle pressure changes well, causing flow to fluctuate if water pressure isn’t stable.

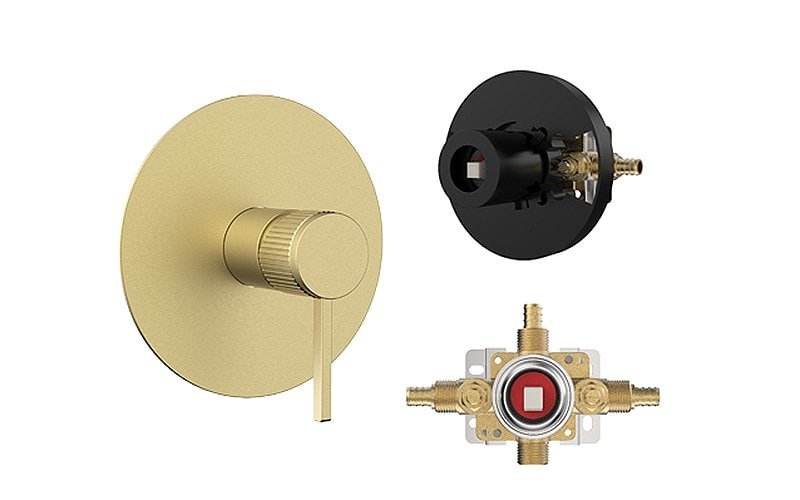

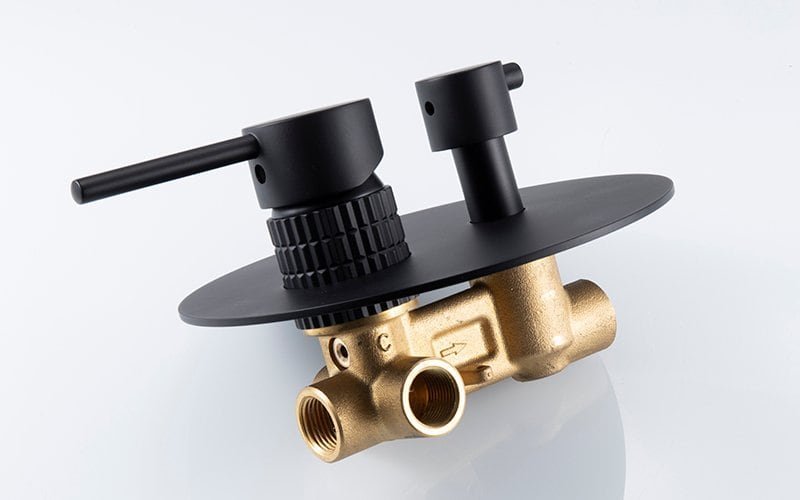

• Water temperature control is achieved by adjusting the ratio of hot and cold water flow with a single handle.
• With a simple mixing mechanism, users can turn the handle to adjust the water temperature and flow rate at the same time.
• Suitable for single-handle faucet design, widely used in domestic shower systems.

• Easy to operate, users can easily adjust the water temperature.
• Easy to replace, suitable for home user maintenance.
• Simple structure, suitable for a wide range of applications.

• High sensitivity to changes in water pressure may result in temperature fluctuations.
• Does not have advanced temperature control.

To help you understand more about the Pressure Balancing Valve system, read the following:

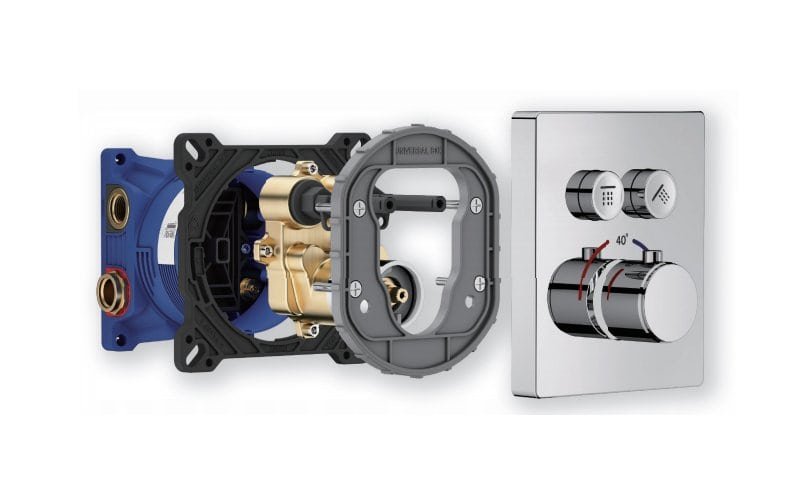

• Equipped with an inbuilt thermostat that precisely mixes hot and cold water at a temperature set by the user.
• The thermostat automatically adjusts the water flow to maintain a stable water temperature even when the water pressure changes.
• This reduces water temperature fluctuations and provides a constant and consistent comfort experience.

• Provides precise temperature control to enhance showering comfort and safety.
• Saves water and reduces wastage by adjusting the water temperature.
• Suitable for demanding users, performs particularly well where water pressure is unstable.

• Higher price, the cost is higher than hot and cold valve or pressure balance valve.
• Complex structure, installation and maintenance require professional technical support.

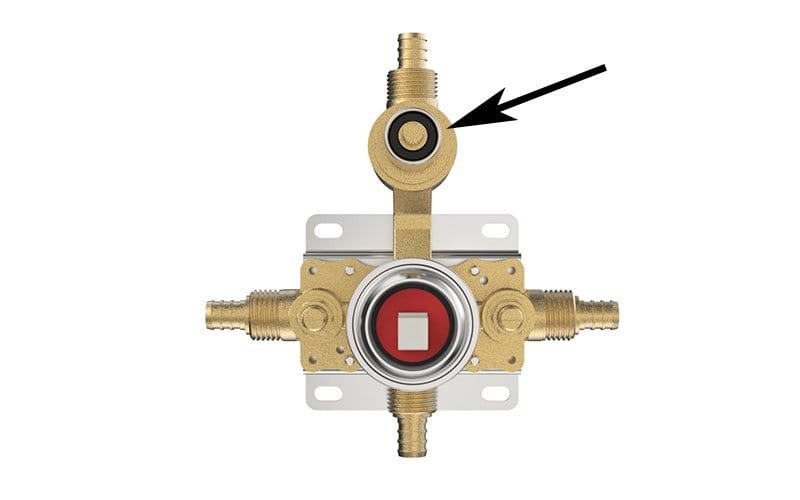

• A diverter cartridge redirects water from one outlet to another using internal channels and a moving mechanism (like a spool, gate, or disc).
• When you pull a knob or turn a lever, the mechanism shifts—blocking one path (e.g., tub spout) and opening another (e.g., showerhead). It acts as a gatekeeper, directing water based on your action.

• Versatile: Support multiple shower functions from one rough-in, maximizing space.
• Space-Saving: No need for separate lines or valves for each outlet.
• Convenient: Easily switch between water outputs with one movement.

• Leak Risk: Worn seals can cause water to flow to both outlets at once.
• Harder to Replace: Some diverters are tricky to access, depending on the valve design.
• Limited Use: They only divert water—no control over temperature or flow.

It might seem like magic, but the way a shower cartridge works is actually quite clever! When you turn your shower handle, you’re directly interacting with the cartridge inside the valve. Here’s the simplified breakdown:

• Internal Movement: As you twist or pull the handle, the cartridge physically moves or rotates within the shower valve body.
• Water Mixing: This movement precisely adjusts internal ports, allowing just the right amount of hot and cold water to mix together. This is how you get that perfect lukewarm, warm, or hot shower.
• Flow Control: The cartridge also controls how much water flows through. Turn it one way, and the water starts; turn it another, and it stops. You can also adjust the intensity of the spray.
• Temperature Stability: Thermostatic and pressure balance cartridges add extra smarts by maintaining your set temperature—even if someone flushes a toilet or uses another faucet—so you avoid sudden, unpleasant changes.

It’s a complex dance of internal components, and seeing it in action» really helps.

Like any hardworking part, shower cartridges can wear out over time. They typically last between 10 and 30 years, but hard water or debris can shorten that lifespan. If your shower isn’t performing as it should, your cartridge might be the culprit.

• Dripping or Leaking Showerhead: Water keeps dripping even when off? Worn seals or a faulty cartridge may be to blame.
• Inconsistent Water Temperature: Sudden hot or cold shifts? Your cartridge might not be regulating temperature properly.
• Low Water Pressure: Weak shower flow but normal pressure elsewhere? Mineral buildup could be clogging the cartridge.
• Hard-to-Turn Shower Handle: Struggling to adjust the handle? Internal parts of the cartridge might be worn or stuck.
• Strange Noises from the Shower: Hearing whistling or screeching? A faulty cartridge could be restricting water flow.

• Mineral Buildup (Hard Water Deposits): If you live in an area with hard water, minerals like calcium and magnesium can build up inside the cartridge, causing blockages or damaging the seals. You can learn more about hard water and its effects on plumbing here».
• Normal Wear and Tear: Like any mechanical part, constant use over years will eventually lead to the components wearing down.
• Worn or Damaged Seals/O-rings: The rubber seals inside the cartridge can crack or degrade over time, leading to leaks and poor performance.
• Debris or Rust in Pipes: Especially in older plumbing systems, small particles of rust or debris can break off and clog the cartridge, affecting water flow and temperature control.

• Visual Inspection: First, turn off your water supply. Then, remove your shower handle and carefully take out the cartridge. Look for any visible cracks, worn seals, or mineral deposits.
• Water Flow Test: With the cartridge removed, briefly turn on the water supply (be careful, it will spray!). If the water flows freely and with good pressure, it’s a strong sign the problem is with the cartridge itself, not your main plumbing.
• Temperature Test: After reinstalling the cartridge, check if the temperature control is still unstable. If the issues persist, a replacement is likely needed.

So, you’ve diagnosed a faulty cartridge. What’s next? Replacing a shower cartridge is a common DIY task that many homeowners can handle. However, it’s also perfectly fine to call in a pro if you’re not comfortable. Let’s walk through what you need to know.

• If you’re handy and follow instructions, you can replace the cartridge yourself in about 30 minutes and save on labor.
• But if you’re unsure or issues remain, call a plumber—they can quickly fix complex problems.

• A new replacement shower cartridge (make sure it’s the right one!)
• Adjustable wrench
• Screwdriver (Phillips or flathead, depending on your screws)
• Plumber’s grease
• Towel or rag
• Needle-nose pliers (optional, but helpful)
• Allen wrench set (if your handle requires it)
• A drop cloth or old towel to protect your shower floor and catch small parts

• Turn off the water supply before starting.
• Check under the sink or behind an access panel for the shut-off valve.
• If you can’t find one, turn off the main water supply.
• Then open the shower valve to release any remaining pressure.

• Turn Off the Water Supply: (As noted earlier, this is essential!)
• Remove the Handle and Trim Plate: Use a screwdriver to remove the screw and pull off the handle. Then remove the trim plate—gently pry if needed.
• Remove the Old Cartridge: You’ll now see the valve. Remove the retaining clip or mounting nut with a wrench or pliers. Note the cartridge’s orientation, then pull it out—wiggle gently if stuck.
• Prep the New Cartridge: Apply plumber’s grease to the O-rings for smoother installation and leak prevention.
• Install the New Cartridge: Slide it into the valve, aligning it properly. Reinstall the retaining clip or nut.
• Reassemble the Valve: Reattach the trim plate and handle. Tighten screws carefully—don’t overtighten.
• Turn On Water and Test: Slowly restore water, open the valve, and check for leaks. Test temperature and flow.

• Compatibility is key—cartridges aren’t universal. Match the new one to your valve’s brand and model. The best way is to check the old cartridge’s number or take it to the store.
• Buy from hardware stores, plumbing suppliers, or online.
• Choose quality—spending a bit more on a trusted brand can save trouble later.

Replacing the cartridge is much cheaper than replacing the whole valve. A full valve job costs around $350, while a cartridge swap is budget-friendly—especially if you DIY.

Cartridges last a long time, but simple maintenance helps them last even longer:

• Check for Leaks: Watch for drips—catching issues early prevents bigger problems.
• Clean the Cartridge: Hard water can cause buildup. Clean it as recommended to avoid clogs.
• Inspect Handle and Trim: Ensure the handle turns smoothly and the trim is tight. Stiffness or looseness may signal a cartridge issue.

For more tips on maintaining your home’s plumbing, check out this general guide» on common household plumbing issues.

• Shower head: wall-mounted for overhead spray.
• Hand shower: with hose for easy cleaning and flexible use.
• Body spray: wall-mounted to provide multi-angle spray for the body and enhance the showering experience.
• Spout: mounted at a low level, typically used to fill the bath or clean the feet.
• Shower hose: connects overhead and hand shower
• Rigid Riser Kit or Sliding Rail Kit: Holds the hand shower or other components in place.

You now have a clear understanding of shower cartridges—how they work, how to fix issues, and when to replace them. This helps keep your shower running smoothly with the perfect water flow.

A well-maintained cartridge boosts water efficiency, safety, and plumbing lifespan. If problems persist or repairs feel too complex, contact a professional plumber.
