A Simple Guide to Shower Head Spray Patterns and Features

A shower is something most of us do every day. The shower head is a big part of that. Today’s shower heads are made with special engineering to spray water in different ways. Picking a shower head means thinking about what kind of spray you like and what features you want.

There are many shower heads to choose from. You might see words like “rain,” “massage,” “mist,” or “jet” to describe the spray.3 Some use special technology to change how the water feels.

This guide will explain the different types of shower head sprays. We will look at how they work inside. We will also give you a list of common spray types and explain new technologies.

Finally, this guide will help you choose a shower head that fits your needs, look at new shower technology, and give you tips on how to keep it clean. The goal is to give you the information you need to pick a shower head you’ll be happy with.

To understand why shower heads are different, it helps to look at the parts inside. The way the water feels is because of how it moves through the shower head. The design of the small holes, called nozzles, and other parts inside all work together to create a certain kind of spray.

The most important part for creating the spray is the nozzle. The size, shape, and location of these little holes decide how fast the water comes out and how wide the spray is.

The science is simple: when you push water through a smaller hole, it comes out faster. This is how “high-pressure” shower heads work. The small nozzles make the water spray out with more force. This can make your shower feel strong even if your home has low water pressure.

But there’s a balance. If the nozzles are too small, the spray can feel sharp. Studies show that a nozzle size around 0.5mm feels both strong and comfortable. Nozzles that are very tiny, like 0.2mm, can feel like needles if the pressure is high.

The number of nozzles and how they are arranged on the shower head changes the shape of the spray. For example, a large square shower head might have 256 nozzles. Some newer designs have up to 300 nozzles to make the water cover you more evenly. The goal is to spread the water out so it’s not too narrow or too wide.

Shower heads with more than one spray pattern have a special part inside that changes where the water goes. This lets you switch from a gentle spray to a strong one

In most shower heads with multiple settings, there is a part called a diverter plate. When you turn the handle on the shower head, this plate spins. The nozzles are grouped into different sections, and each section gets water from a different channel.

The diverter plate has an opening that lines up with one channel at a time, sending all the water to one group of nozzles. To mix sprays, the plate can open two sections at once.

The “massage” or “pulsating” spray is created by a moving part inside called a turbine. Water is aimed at the turbine’s fins, which makes it spin very fast.

As the turbine spins, it covers and uncovers groups of nozzles over and over again. This quick blocking and unblocking of water is what creates the pulsing feeling.

New shower heads do more than just point water. They are designed to change the water droplets themselves. This is important because of rules that limit how much water a shower head can use.

Water-saving rules from groups like the U.S. Environmental Protection Agency (EPA) mean that new shower heads use less water than older ones. But people still want a shower that feels powerful.

Since shower heads can’t use more water, companies found new ways to make the water feel like more. They use technology to make the water spray out faster and to change the size of the water drops.

That’s why “high-pressure” shower heads don’t actually increase your home’s water pressure. They just make the water that comes out feel stronger.

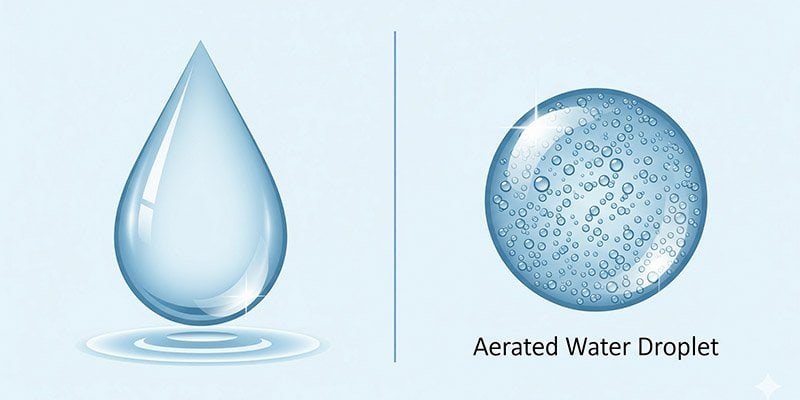

Some shower heads mix air with the water as it flows through. This makes the water droplets bigger and feel softer. These drops with air in them can also feel warmer and make it seem like there’s more water, even though it’s using less.

Other shower heads, especially those for homes with low water pressure, have a small chamber inside. This chamber squeezes the water, which builds up pressure right before it sprays out of the nozzles.

This makes the water shoot out with more speed, so the shower feels strong even if the water pressure in your pipes is low.

Once you know how a shower head works, you can understand the different kinds of sprays it can make. Each spray pattern is made for a different feeling. Here is a list of the most common types.

Most spray patterns fit into one of these four groups.

• Description: This spray feels like standing in a soft rain. It comes from large shower heads with many nozzles that spread the water over your whole body. Some models mix air into the water to make the drops feel extra full and soft.
• Good For: A relaxing shower and rinsing your whole body at once.

• Description: This spray is strong and focused. The water is pushed through fewer nozzles, which makes it come out much faster. The stream is sharp and powerful, which can feel energizing. It’s good for washing shampoo out of thick hair.
• Good For: Waking you up in the morning and rinsing off quickly.

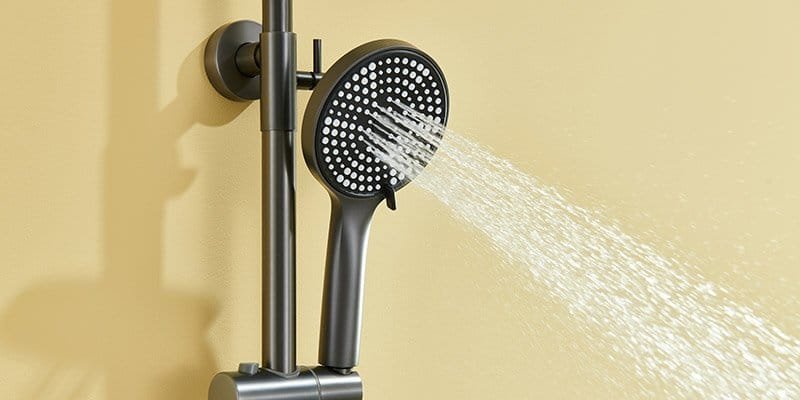

• Description: This pattern feels like a massage. A part inside the shower head spins and interrupts the water, making it pulse. The feeling is like a strong, rhythmic beat, which you can aim at one spot. Some advanced versions create a swirling pattern.
• Good For: Focusing water on sore muscles.

• Description: This is the softest spray. Water is forced through very tiny holes, which turns it into a fine mist, like a cloud. It feels gentle and cool. In a closed shower, it can create a steam room effect.
• Good For: Cooling off or a very gentle wash.

Shower head makers have created special technologies to make the shower feel even better.

Some shower heads use a special chip inside to make the water spin and form a wave pattern. This creates bigger water drops that feel warmer and cover more of your body. It’s designed to give the feeling of more water while still saving water.

Other shower heads have nozzles with several tiny holes in each one, instead of just one. This breaks the water into thousands of very small drops. The spray feels extremely soft and is also very quiet. Even though it’s gentle, the large number of drops helps rinse shampoo out well.

This technology pulls a large amount of air into the water stream. This makes the water drops feel bigger, fuller, and warmer, which is great for rain shower heads.

This design is used in some rain shower heads. It uses special channels inside to build up pressure, which makes the spray stronger and wider.

This technology focuses on the inside of the shower head. It uses carefully designed channels to make sure every single nozzle gets the same amount of water pressure. This helps every spray pattern feel balanced and work correctly.

Knowing about the technology helps you make a good choice. The right shower head for you depends on your daily routine, what you like, and your home’s plumbing.

Think about when you shower and what you want it to feel like.

If you shower to wake up, a strong, targeted spray might be a good choice. If you shower to relax at night, a gentle, wide spray like a rain pattern might be better.

If you are active, a shower head with a pulsating or massage setting can help you direct water to sore spots.

If you have long or thick hair, a spray that is both wide and strong can help you rinse out shampoo and conditioner faster.

A new shower head can also fix common issues.

If your shower feels weak, you may have low water pressure (below 40 PSI). Look for a shower head that is sold as a “high-pressure” model. These are made to increase the speed of the water, which makes the spray feel stronger.

To save water and energy, look for a shower head with the EPA WaterSense label. This means it uses 20% less water than standard models but still performs well.

A family can save thousands of gallons of water each year with one of these. Some shower heads also have a “pause” button that slows water to a trickle while you lather up.

The way a shower head is mounted also affects your shower.

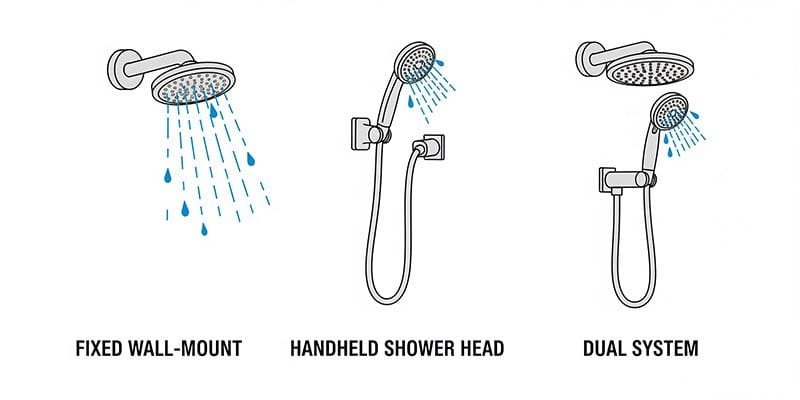

A fixed shower head is attached to the wall and is the most common type. A handheld shower head is on a long hose, which is useful for rinsing, washing kids or pets, and cleaning the shower. A dual system has both a fixed head and a handheld one, giving you the most options.

For a rain shower to work as intended, it needs to be mounted directly over your head. This is done with an arm that comes down from the ceiling or a long arm from the wall.

Shower heads are becoming smarter. They are connecting to the internet and becoming part of a “smart home.” This is changing how we shower every day.

The biggest change is the use of digital controls.

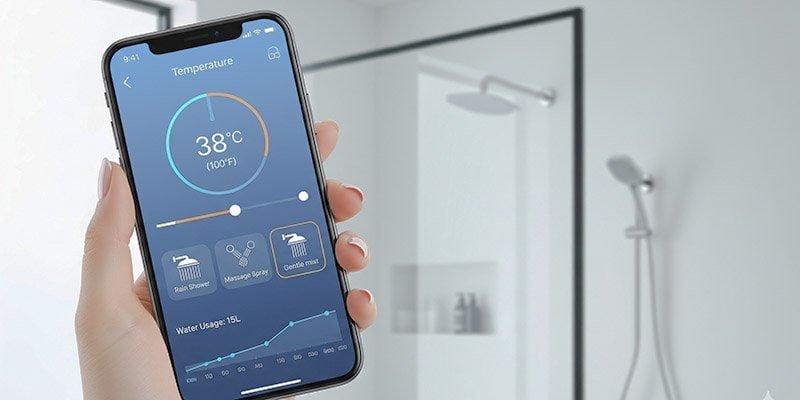

Some new shower systems have touchscreens or can be controlled with a phone app or your voice through a smart assistant. You can set the exact temperature and spray pattern you want and save your favorites.

Some smart shower heads can track how much water and energy you use in each shower. A small turbine inside powers a chip that sends the information to an app on your phone. This can help you see how much you are using and find ways to save.

New technology can also save water for you.

Some shower heads have sensors that can tell if you are standing under the water. If you step back to shave or wash your hair, the shower head automatically slows the water to a trickle. When you step back under, the full spray starts again. This can save a lot of water that is normally wasted.

Future showers will be about more than just water.

Smart showers can include colored LED lights to set a mood, steam generators to turn your shower into a steam room, and built-in waterproof speakers to play music or podcasts.

This means the shower is becoming a part of your smart home. Soon, your shower might connect to your fitness tracker and suggest a spray pattern after a workout. The decision will be less about just the spray and more about the entire experience.

A good shower head can stop working well if it’s not kept clean. Minerals in hard water can build up and clog the small nozzle holes. Cleaning your shower head the right way will keep it working properly.

“Hard water” has a lot of minerals in it, like calcium. When water dries on your shower head, it leaves these minerals behind. This buildup is called limescale. Over time, limescale can block the nozzles, which makes the spray uneven and weak.

The material the nozzles are made of makes a difference in how easy they are to clean.

Many new shower heads have soft, flexible nozzles. Limescale doesn’t stick to them as easily. You can often clean them just by rubbing the nozzles with your finger to break up any buildup.

Older shower heads often have hard metal or plastic nozzles. Limescale sticks to these very tightly. You usually need to use a cleaner, like vinegar, to dissolve the minerals.

Cleaning your shower head regularly will keep it working like new.

Once a month, rub the nozzles with your finger if they are rubber or silicone. Wiping the shower head with a cloth after you shower can also help stop water spots.

Every few months, or when you notice the spray is weak, give it a deep clean with vinegar

• For a Fixed Shower Head: Fill a plastic bag with white vinegar. Put the bag over the shower head so the nozzles are soaking in the vinegar. Use a rubber band to hold the bag in place.
• For a Removable Shower Head: Unscrew the shower head and put it in a bowl of white vinegar.
• Wait: Let it soak for a few hours. If your shower head has a special finish like brass or gold, only soak it for about 30 minutes to be safe.
• Rinse: After soaking, take the shower head out and run hot water through it to flush out any loose bits. Use an old toothbrush to scrub any leftover buildup off the nozzles.

• Clean the Filter: Unscrew the shower head. There is a small screen inside where it connects to the pipe. Pull it out with tweezers and scrub it clean with a toothbrush and vinegar.
• Use Baking Soda: Make a paste with baking soda and water. Scrub the nozzles with the paste and a toothbrush. This can help remove tough spots.
• Clear Individual Holes: If a nozzle is still blocked, you can carefully poke a paperclip into the hole to clear it. Be gentle so you don’t damage it.

The shower head has changed from a simple pipe to a piece of technology that can make your daily routine better. You can now choose from many different sprays, from a strong jet to a soft mist.

To make a good choice, it helps to understand how shower heads work. Knowing about nozzle size, internal parts, and new technologies helps you pick a shower that fits what you want. The choice is about matching a spray pattern to your lifestyle and deciding if you want to save water.

As technology improves, showers will become even smarter and more connected. With the information in this guide, you can choose a shower head that is more than just a piece of hardware. You can choose an experience that will make your daily shower better.
